Button


The tk2dButon script has been deprecated in favour of the 2D Toolkit UI system. It is a much more comprehensive system supporting a variety of basic controls, and is far more efficient.

The tk2dButton script is an example of how to create a button using 2D Toolkit. While it is a functional button, but you will probably need to modify this script to fit in to the rest of your project. Check demo 6 - button and 3d sprites for them in action.

Button

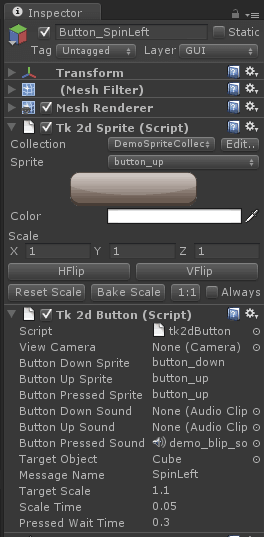

In order to use this script, follow these instructions: * Create a Sprite and select your initial button sprite. * Add the tk2dButton behaviour to this Game Object. * Camera doesn't need to be set if your button is a child of your GUI camera. Otherwise, point it to the camera which will display your button. If you only have one camera in the scene, you may leave this blank. * Rename "Button Down Sprite" and the others to refect the sprite names you wish to use.

Button Down - Button is being clicked

Button Up - Button is no longer being clicked

Button Pressed - Button has been pressed.

Attach appropriate sounds if you wish, but you will need to attach an AudioSource behaviour if you need it to play sound.

Target Object & Message Name - the target object to send the message.

Target Scale - How much the button scales by when the cursor hovers over it

Scale Time - How long it takes to reach this scale

Pressed Wait Time - How long it waits before allowing the user to press it again

The button class has had many more improvements under the hood. Check here for more information
